Brand Name : BAOSI
Model Number : BSF10
Certification : ISO9001,ISO14001,CE,OHSAS18001
Place of Origin : CHINA
MOQ : 1
Price : $ 100/ set
Payment Terms : T/T
Packaging Details : Carton
Model : BSF 10
Filter Specification : 10L
Baosi Pump : DRV10/DRV16/BSV24
Max processing flow : 10L/s
Filter Element : Fiberglass
Shell Material : Plastic
10L/s oil mist trap to protect the equipment from oil mist pollution
Advantage to the user
- Filter of the exhaust gas by removal of entrained lubricant particles
- Emptying via drain screw or exhaust filter drain tap
Filter elements(made of glass fiber) are exchangeable
Description:
When the oil rotary vacuum pump is operated at atmospheirc pressure or under low vacuum,the oil will be discharged together with the gas which has been pumped.
This kind of exhaust gas is composed of many tiny oil droplets and exhausted in the form of smoke through the pump outlet.
The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.
Parameter:
Model | BSF10 |
Filter Specification | 10L |
Maximum Processing Flow L/s(m³/h) | 10(36) |
Inlet | KF25 |
Outlet | KF25 |
Pump | DRV10/DRV16/BSV24 |
Weight(kg) | 0.85 |

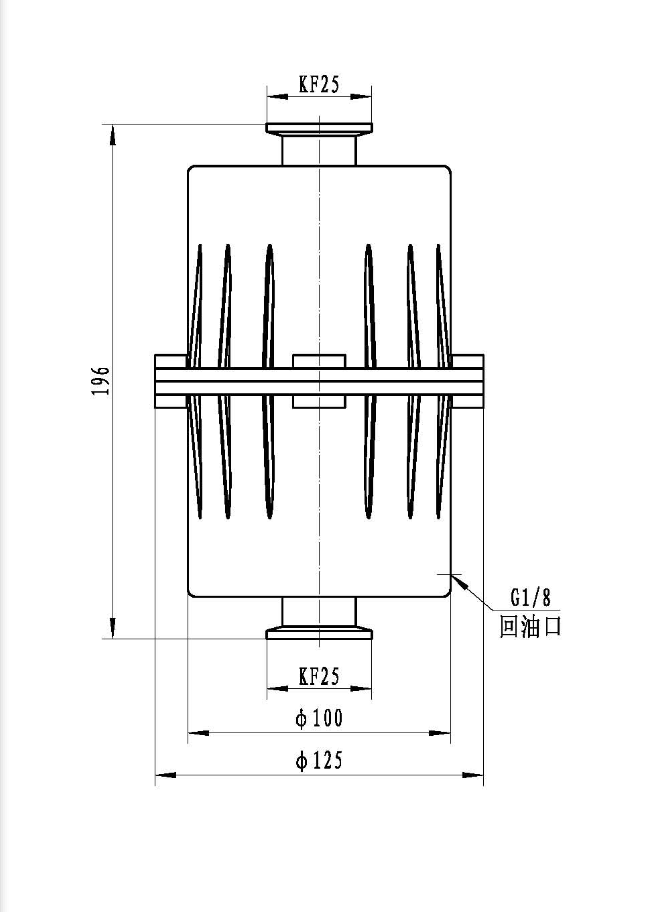

Outline Drawing:
Application :
Used with oil rotary vacuum pump or vacuum system.
![]() |
10 L/s Plastic Vacuum Pump Oil Mist Filter Protecting from Oil Mist Pollution Images |
